Nginx Proxy Manager

Nginx Proxy Manager is a popular tool in the homelab community for managing reverse proxies. While it differs from Traefik and Caddy due to Nginx’s lack of native 302 redirect support in the auth_request module, Tinyauth provides API paths specifically designed to work with it.

Note

This guide assumes familiarity with Nginx Proxy Manager.

Example Docker Compose File

The following Docker Compose file demonstrates how to set up Nginx Proxy Manager, Whoami, and Tinyauth:

docker-compose.yml

services:
  npm:
    image: jc21/nginx-proxy-manager:2
    restart: unless-stopped
    ports:
      - 80:80
      - 443:443
      - 81:81
    volumes:
      - npm-data:/data
      - npm-letsencrypt:/etc/letsencrypt

  whoami:
    image: traefik/whoami:latest
    restart: unless-stopped

  tinyauth:
    image: ghcr.io/steveiliop56/tinyauth:v5
    restart: unless-stopped
    environment:
      - TINYAUTH_APPURL=http://tinyauth.example.com
      - TINYAUTH_AUTH_USERS=user:$$2a$$10$$UdLYoJ5lgPsC0RKqYH/jMua7zIn0g9kPqWmhYayJYLaZQ/FTmH2/u # user:password

volumes:
  npm-data:
  npm-letsencrypt:

OAuth and access controls can be configured using Docker labels and environment variables. All other configuration is managed through the Nginx Proxy Manager UI.

Configuring Nginx Proxy Manager

Creating the Tinyauth Host

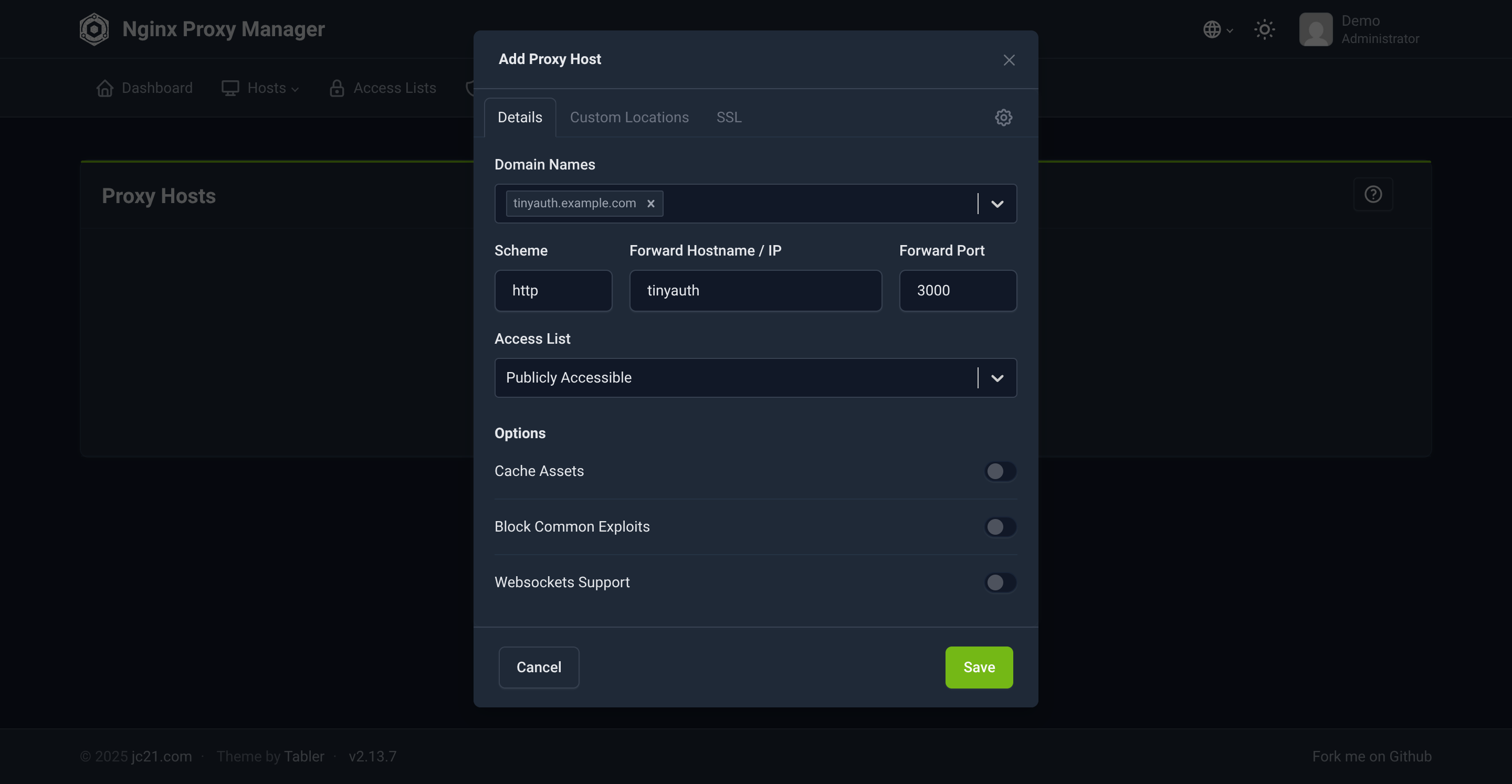

Create a host for Tinyauth in Nginx Proxy Manager. Configure it as any other host:

SSL can be set up if certificates are available.

Caution

Ensure the “Block Common Exploits” option is disabled. If enabled, Nginx will block URLs in query parameters, which are required for Tinyauth to function.

Configuring Protected Hosts

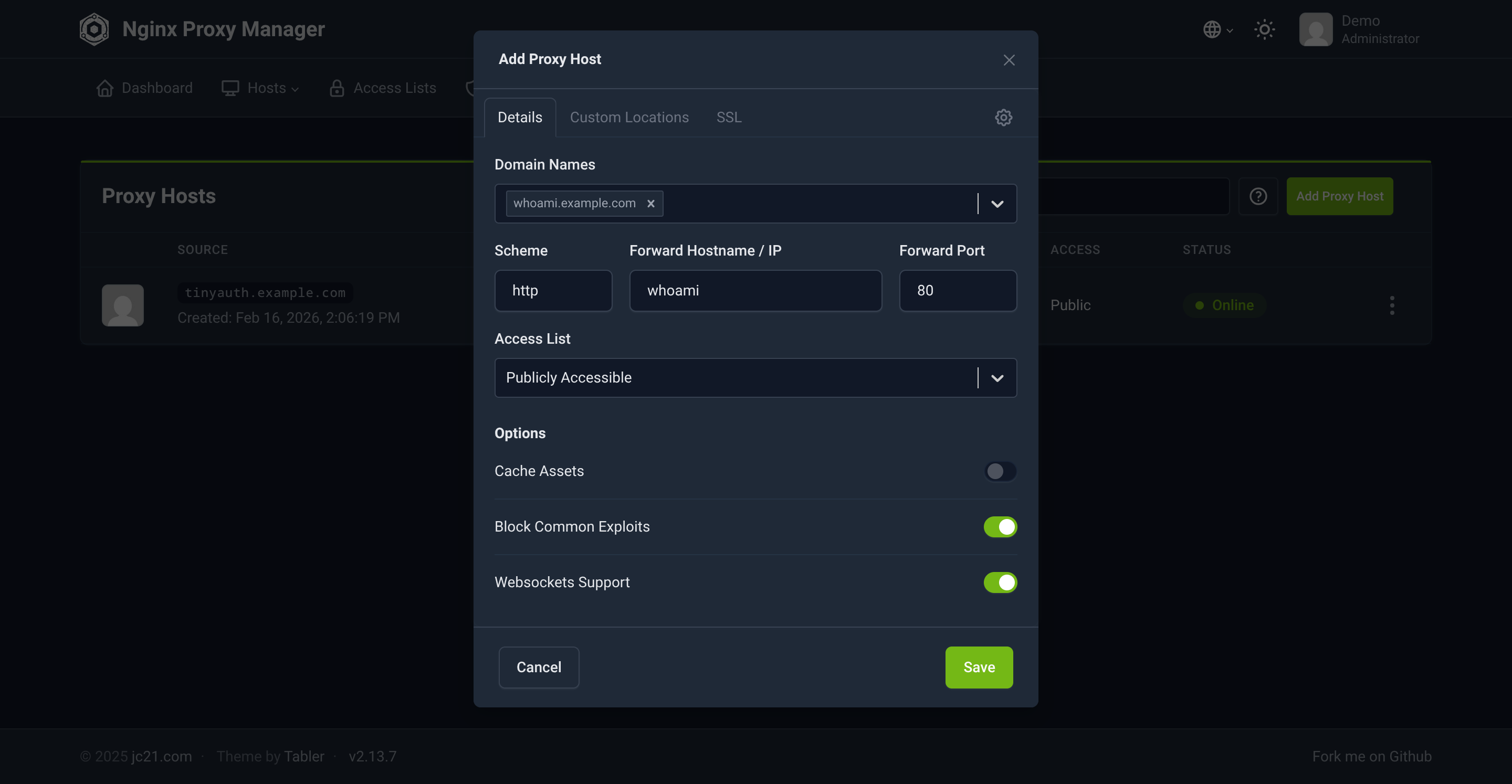

For protected hosts, such as Whoami, configure the Details tab similarly to the Tinyauth host:

SSL can be configured as needed.

Note

The “Block Common Exploits” option can remain enabled for protected hosts.

Advanced Configuration

Add the following configuration in the Advanced tab to enable Tinyauth authentication:

# Root location
location / {
  # Pass the request to the app
  proxy_pass          $forward_scheme://$server:$port;

  # Add other app-specific config here

  # Tinyauth auth request
  auth_request /tinyauth;
  error_page 401 = @tinyauth_login;
}

# Tinyauth auth request
location /tinyauth {
  # Pass request to Tinyauth
  proxy_pass http://tinyauth:3000/api/auth/nginx;

  # Pass the request headers
  proxy_set_header x-forwarded-proto $scheme;
  proxy_set_header x-forwarded-host $http_host;
  proxy_set_header x-forwarded-uri $request_uri;
}

# Tinyauth login redirect
location @tinyauth_login {
  return 302 http://tinyauth.example.com/login?redirect_uri=$scheme://$http_host$request_uri; # Replace with your app URL
}

It should look like this:

Note

The /tinyauth path can be renamed for convenience.

Note

Additional configuration may be required under the / location for technologies like WebSockets.

Note

Due to the way Nginx handles forward auth, Tinyauth cannot automatically redirect to the unauthorized page. Thus, users may be redirected to a blank 403 Forbidden page in case of a failed authentication. This can be somehow mitigated by configuring a custom error page for the 403 status code:

location / {
  # Rest of your configuration
  error_page 403 = @tinyauth_unauthorized;
}

location @tinyauth_unauthorized {
  return 302 http://tinyauth.example.com/unauthorized?username=unavailable; # Replace with your app URL
}

Save the host configuration. Accessing the protected host will redirect to the Tinyauth login page if not already logged in. Repeat this process for each host to be protected by Tinyauth.
