Zitadel

Contributor: @WilliamB78.

Tinyauth has built-in support for any generic OAuth provider. This guide demonstrates how to use Zitadel to authenticate users.

Requirements

• A domain name (gTLD required)
• A Zitadel instance (cloud or self-hosted)

Creating the Zitadel OAuth App

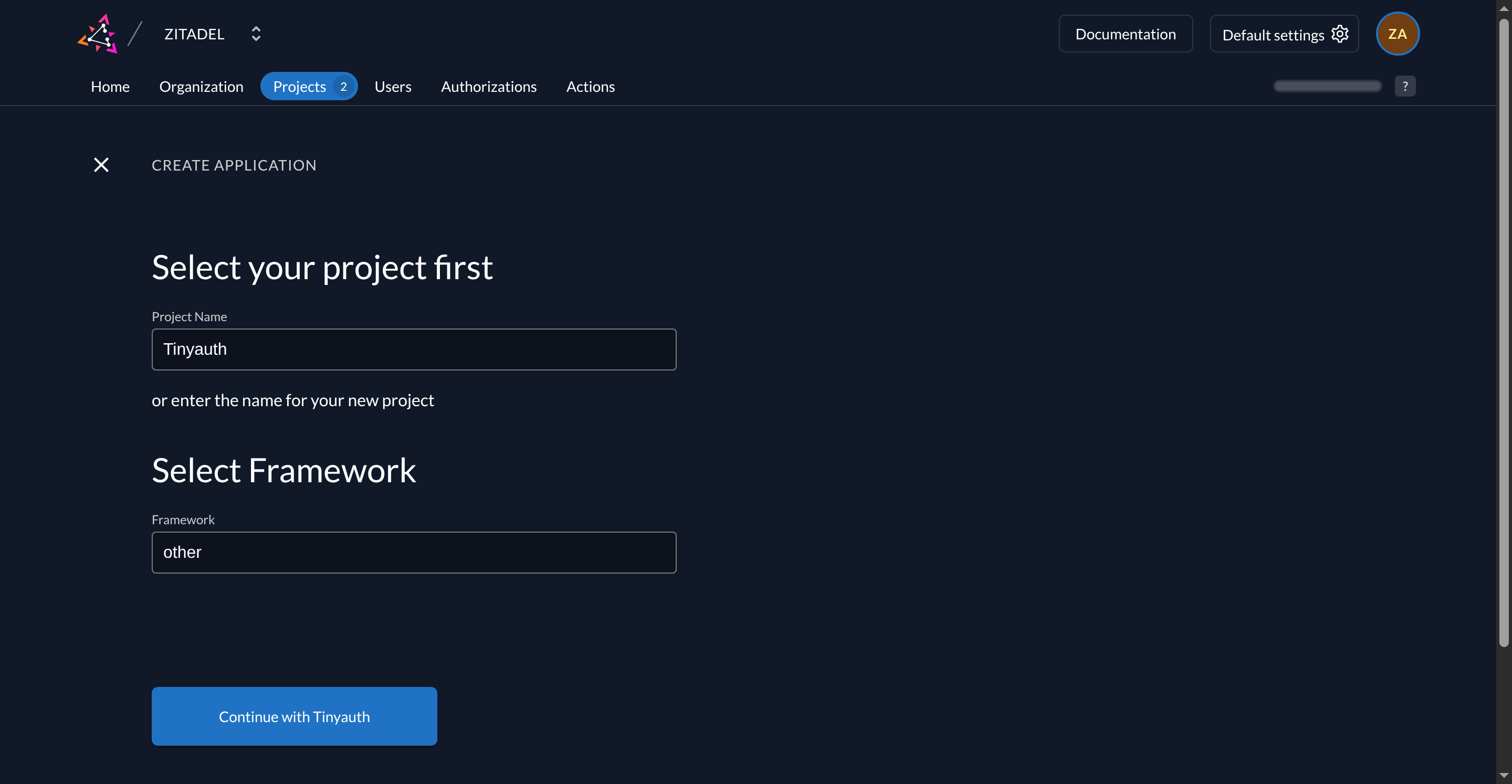

Begin by creating an app in Zitadel. Visit the Zitadel Console and create a new project. For project name use Tinyauth and for framework select other.

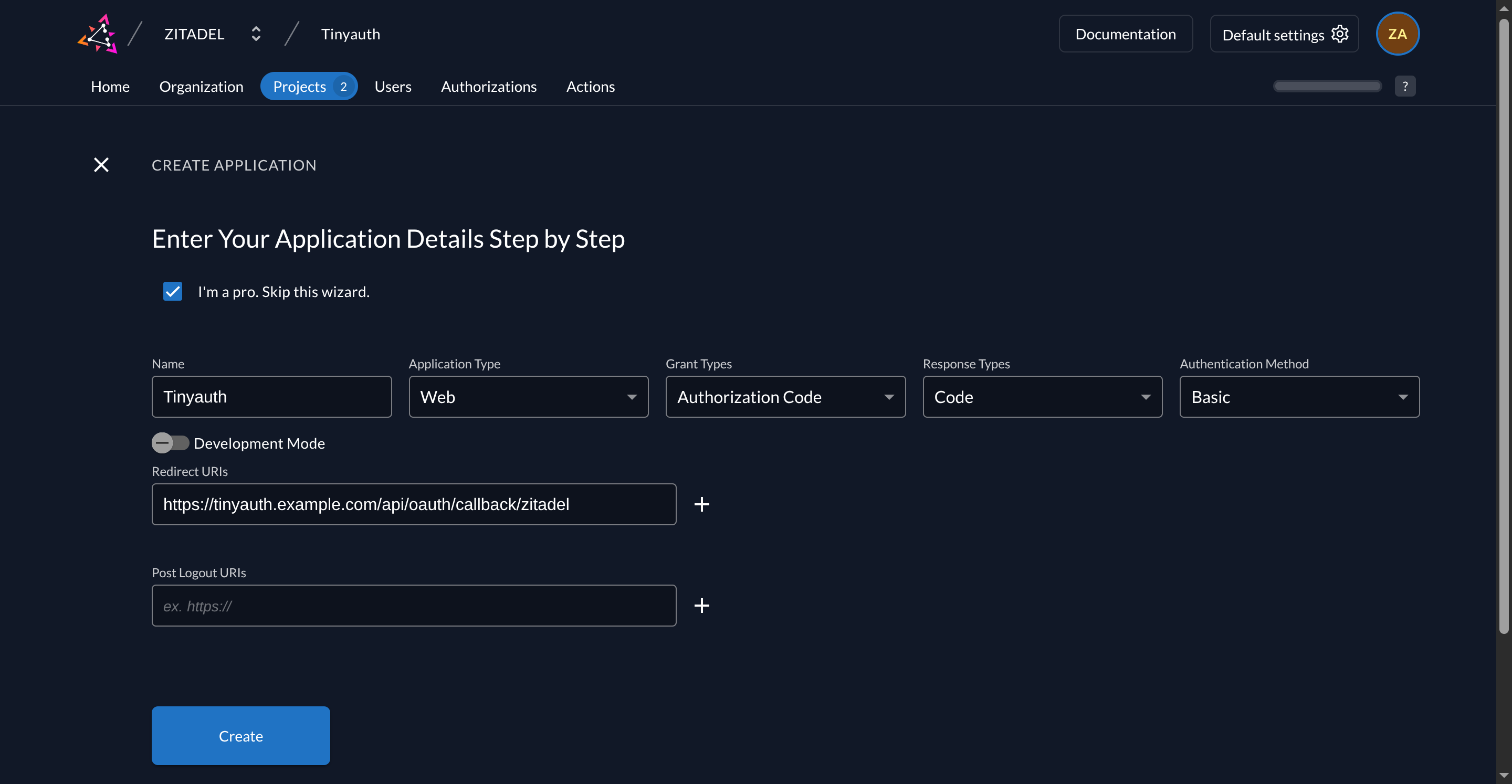

Then, create a new application by clicking the + button. Follow the wizard and configure the app as follows:

Name	Value
Name	Tinyauth
Type	Web
Grant Types	Authorization Code
Response Types	Code
Authentication Method	Basic
Redirect URI	https://tinyauth.example.com/api/oauth/callback/zitadel

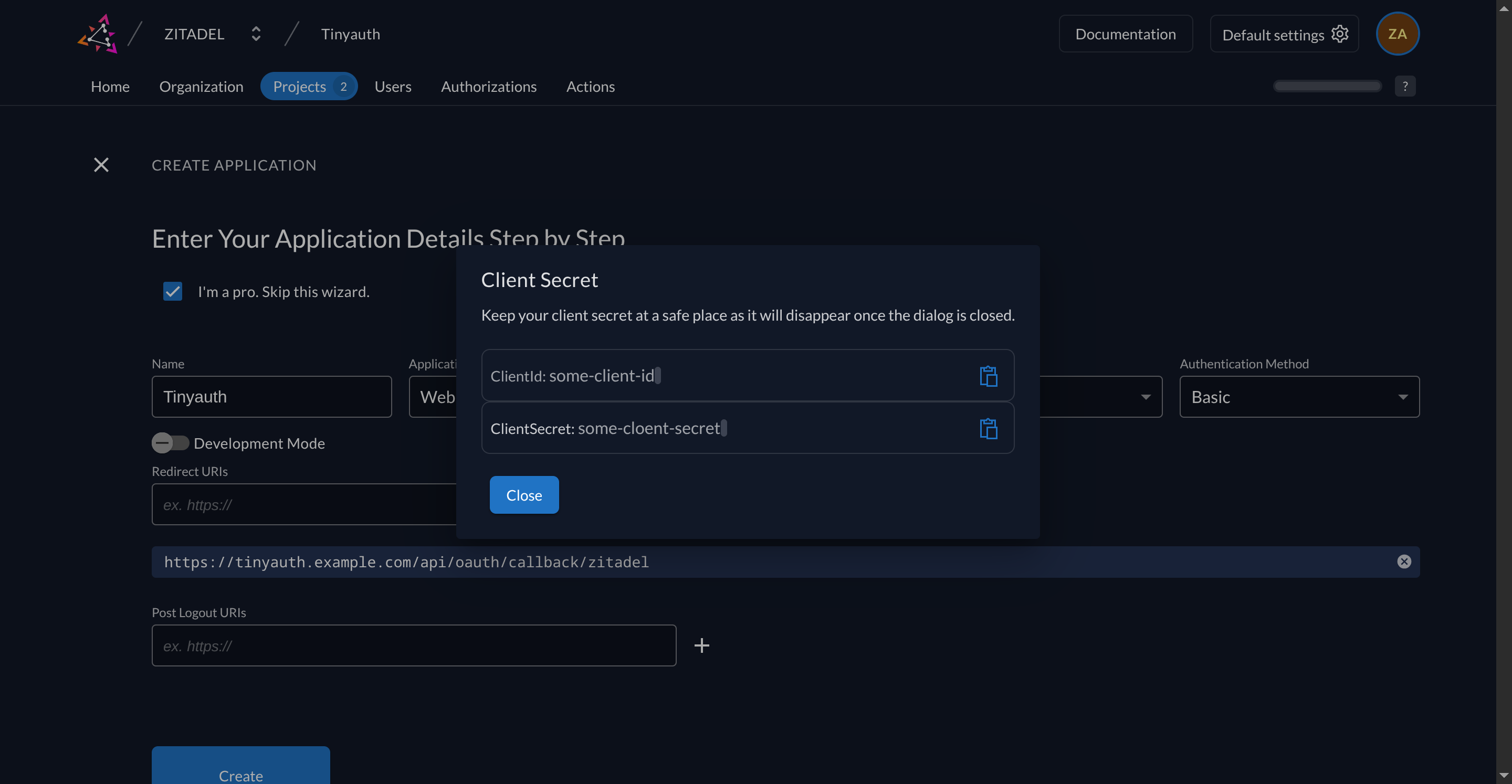

Finalize by clicking the Create button. Copy the client ID and client secret.

Configuring Tinyauth

To integrate Zitadel with Tinyauth, add the following environment variables to the Tinyauth Docker container:

services:
  tinyauth:
    environment:
      - TINYAUTH_OAUTH_PROVIDERS_ZITADEL_SCOPES=openid profile email preferred_username groups
      - TINYAUTH_OAUTH_PROVIDERS_ZITADEL_AUTHURL=https://zitadel.example.com/oauth/v2/authorize
      - TINYAUTH_OAUTH_PROVIDERS_ZITADEL_TOKENURL=https://zitadel.example.com/oauth/v2/token
      - TINYAUTH_OAUTH_PROVIDERS_ZITADEL_USERINFOURL=https://zitadel.example.com/oidc/v1/userinfo
      - TINYAUTH_OAUTH_PROVIDERS_ZITADEL_REDIRECTURL=https://tinyauth.example.com/api/oauth/callback/zitadel
      - TINYAUTH_OAUTH_PROVIDERS_ZITADEL_CLIENTID=your-zitadel-client-id
      - TINYAUTH_OAUTH_PROVIDERS_ZITADEL_CLIENTSECRET=your-zitadel-client-secret
      - TINYAUTH_OAUTH_PROVIDERS_ZITADEL_NAME=Zitadel

Note

Zitadel should be accessed using HTTPS and a trusted certificate. In case this is not possible (e.g. self-signed certificates), you will need to use TINYAUTH_OAUTH_PROVIDERS_ZITADEL_INSECURE=true in order for Tinyauth to skip the certificate check.

Caution

OAuth alone does not guarantee security. By default, any Zitadel account can log in as a normal user. To restrict access, use the TINYAUTH_OAUTH_WHITELIST environment variable to allow specific email addresses. Refer to the configuration page for details.

Note

With OAuth enabled, the TINYAUTH_AUTH_USERS or TINYAUTH_AUTH_USERSFILE environment variable can be removed to allow login exclusively through the OAuth provider.

Restart Tinyauth. Upon visiting the login screen, an additional option to log in with Zitadel will appear.
